Coatings Mixers
MFQ-MFQA Series Spray mixers to be used with MIXPAC™ coatings cartridges
The STATOMIX™ MFQ and MFQA Cartridge mixers ensure that your adhesive develops the desired performance. The MFQ-MFQA range of mixers are extremely short and compact. This mixer construction reduces the volume of waste , thereby saving costs . The lower pressure drop leads to easy , trouble-free pressing , even highly viscous materials . features: Separate component connections The patented connection via two separate outlets ensures absolutely tight interfaces between the mixer and the F cartridge.
F-system Mixcoat Spray Accessories

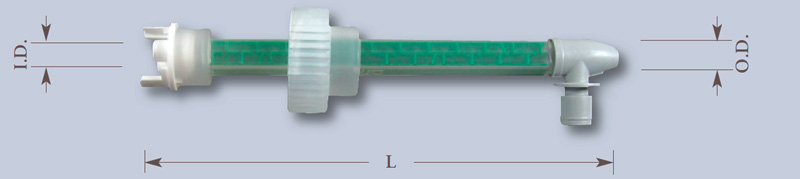

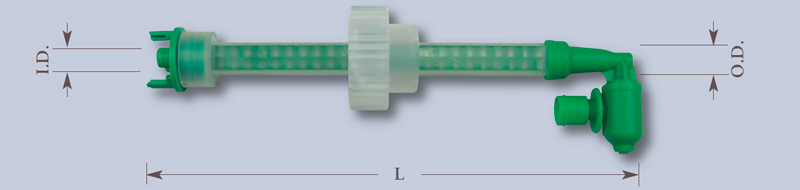

| Part No. | Description | Inner Dia. I.D.(mm) | Num. of Elements | Outer Dia. O.D.(mm) | Length (mm) |
Approx Content Vol(ml) |
|---|---|---|---|---|---|---|
| 128852 | MFQ 08-24C-07 | 8.70 | 24 | 11.70 | 168 | 9.20 |
| 128992 | MFQ 08-24C-06 | 8.70 | 24 | 11.70 | 168 | 9.20 |
| 129004 | MFQA 08-24C-07 | 8.70 | 24 | 11.70 | 178 | 9.40 |
| 129005 | MFQA 08-24C-06 | 8.70 | 24 | 11.70 | 178 | 9.40 |
F-system Mixcoat Brush Accessories
| Part No. | Description | Num. of Elements | Length(mm) | Parts per Box |
|---|---|---|---|---|
| 129401 | FHB 01-15-01 | 24 | 150 | 10 |
