Bell Mixers
MCH Series Mixers
STATOMIX® MCH and MCHX Cartridge static mixers were developed for the MIXPAC® 200
and MIXPAC® 400 SYSTEMS. The unique element design achieves proper mixing with
minimal resistance, which is highly beneficial for manually powered dispensing.
In addition, the MCX version has a patented design that centers the smaller stream of
catalyst in 4:1 and 10:1 formulations.
MC and MCX Series static mixers come in a wide variety of sizes and will mix virtually
any 2-part material including epoxies, silicones, urethanes, acrylics and polyesters. The
MC Cartridge static mixer has an industry standard connection which allows it to be
used with other large cartridge systems.

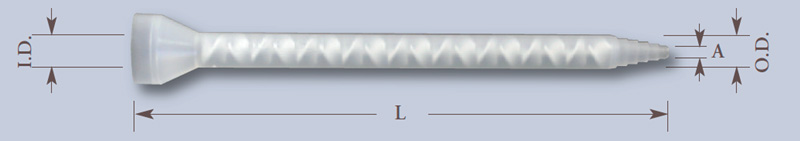

MCH Series for Ratios 1:1 & 2:1
| Part No. | Description | Inner Diameter | Num. of Elements | Outer Diameter | Length(mm) | Nozzle Diameter | Approx Content Vol(ml) |
|---|---|---|---|---|---|---|---|
| 102414 | MCH 05-18 | 5 mm | 18 | 8 mm | 121 | 1.50 | 2.10 |
| 102415 | MCH 05-24 | 5 mm. | 24 | 8 mm. | 149 | 1.50 | 2.30 |
| 102416 | MCH 05-32 | 5.00 | 32 | 8 | 188 | 1.50 | 2.80 |
| 102417 | MCH 06-18 | 6.35 | 18 | 10 | 149 | 1.90 | 3.60 |
| 102418 | MCH 06-24 | 6.35 | 24 | 10 | 185 | 1.90 | 4.20 |
| 102419 | MCH 06-32 | 6.35 | 32 | 10 | 234 | 1.90 | 6.60 |
| 102421 | MCH 08-18 | 8.00 | 18 | 12 | 177 | 2.40 | 6.70 |
| 102424 | MCH 08-24 | 8.00 | 24 | 12 | 223 | 2.40 | 8.50 |
| 102425 | MCH 08-32 | 8.00 | 32 | 12 | 287 | 2.40 | 11.50 |
| 102429 | MCH10-18 | 10.00 | 18 | 14 | 214 | 3.00 | 12.30 |
| 102431 | MCH 10-24 | 10.00 | 24 | 14 | 276 | 3.00 | 14.60 |
| 102433 | MCH 10-32 | 10.00 | 32 | 14 | 352 | 3.00 | 21.80 |
| 102434 | MCH 13-12 | 13.00 | 12 | 17 | 170 | 4.00 | 15.50 |
| 102435 | MCH 13-18 | 13.00 | 18 | 17 | 231 | 4.00 | 21.00 |
| 102437 | MCH 13-24 | 13.00 | 24 | 17 | 293 | 4.00 | 27.30 |
| 102438 | MCH 13-32 | 13.00 | 32 | 17 | 379 | 4.00 | 35.40 |

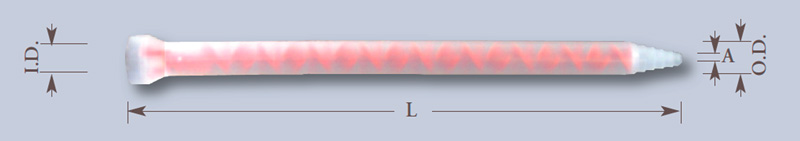

MCHX Series for Ratios 4:1, & 10:1
| Part No. | Description | Inner Diameter | Num. of Elements | Outer Diameter | Length(mm) | Nozzle Diameter | Approx Content Vol(ml) |
|---|---|---|---|---|---|---|---|
| 102440 | MCHX 08-18 | 8.00 | 18 | 12 | 182 | 2.40 | 6.70 |
| 102443 | MCHX 08-24 | 8.00 | 24 | 12 | 230 | 2.40 | 8.50 |
| 102444 | MCHX 10-12 | 10.00 | 12 | 14 | 155 | 3.00 | 9.60 |
| 102445 | MCHX 10-18 | 10.00 | 18 | 14 | 215 | 3.00 | 12.30 |
| 102446 | MCHX 10-24 | 10.00 | 24 | 14 | 275 | 3.00 | 14.60 |
| 102447 | MCHX 13-12 | 13.00 | 12 | 17 | 192 | 4.00 | 15.50 |

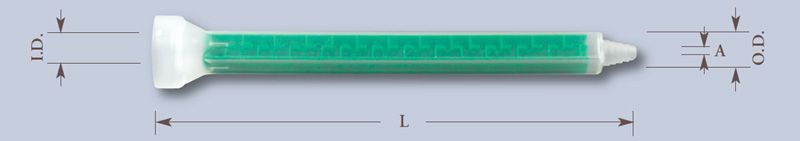

Square Mixers - MCQ Series mixers to be used with all standard 200ml-1500ml cartridges
STATOMIX® MCQ-Series static mixers were developed for the MIXPAC® 200 and MIXPAC® 400 SYSTEMS. The unique element design achieves proper mixing with minimal resistance, which is highly beneficial for manually powered dispensing.
MCQ-Series static mixers come in a wide variety of sizes and will mix virtually any 2-part material including epoxies, silicones, urethanes, acrylics and polyesters. The MCQ-Series static mixer has an industry standard connection which allows it to be used with other large cartridge systems.
MCQ Series for Ratios 1:1, 2:1, 4:1, 10:1
| Part No. | Description | Inner Diameter | Num. of Elements | Outer Diameter | Length(mm) | Approx Content Vol(ml) |
|---|---|---|---|---|---|---|
| 300002 | MCQ 05-24L | 5.30 | 24 | 7.30 | 127 | 3.46 |
| 300006 | MCQ 07-24T | 7.40 | 24 | 9.40 | 130 | 6.19 |
| 300455 | MCQ 08-24T | 8.70 | 24 | 11.70 | 147 | 8.44 |
| 300375 | MCQ 08-32T | 8.70 | 32 | 11.70 | 186 | 10.37 |
| 300377 | MCQ 08-32T | 8.70 | 32 | 11.70 | 186 | 10.37 |
| 102419 | MCQ 10-32T | 10.70 | 32 | 12.70 | 220 | 18.45 |

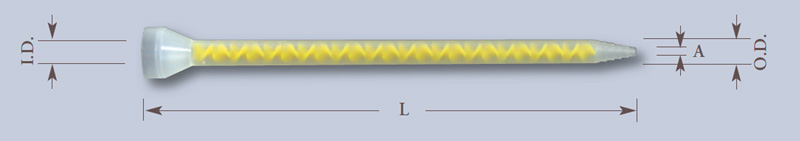

MS-Series - Mixers to be used for Machine Mixing
STATOMIX® MS Series static mixers, when used with meter mix equipment, provide a low cost solution for 2-component mixing. The mixer element is molded of polyacetal to withstand the higher pressures of meter mix machines.
MS Series static mixers are also available with support washers. The washer will prevent the elements from extruding out the end of the housing when working with high pressure applications.
MS static mixers are suitable for all types of meter, mix and dispensing systems. Check with our sales department for the correct static mixer for your equipment.
NOTE: The only functional difference between ME series and MS series is the inner diameter of the bell inlet housing: ME = .625 inches and MS = .657 inches
MS Series for Multiple Ratios Including 1:1, 2:1, 4:1 & 10:1
| Part No. | Description | Inner Diameter | Num. of Elements | Outer Diameter | Length(mm) | Nozzle Dia. A | Approx Content Vol(ml) |
|---|---|---|---|---|---|---|---|
| 102503 | MS 05-24 | 5.00 mm | 24 | 8.00 mm | 149 | 1.50 | 2.30 |
| 102504 | MS 05-32 | 5.00 mm | 32 | 8.00 mm | 188 | 1.50 | 2.80 |
| 102505 | MS 06-24 | 6.35 mm | 24 | 10.00 mm | 185 | 1.90 | 4.20 |
| 102506 | MS 06-32 | 6.35 mm | 32 | 10.00 mm | 234 | 1.90 | 6.60 |
| 102507 | MS 06-48 | 6.35 mm | 48 | 10.5 mm | 334 | 2.20 | 10.00 |
| 102508 | MS 06-56 | 6.35 mm | 56 | 10.5 mm | 378 | 4.50 | 11.00 |
| 102510 | MS 08-24 | 8.00 mm | 24 | 12.00 mm | 223 | 2.40 | 8.50 |
| 102511 | MS 08-32 | 8.00 mm | 32 | 12.00 mm | 287 | 2.40 | 11.50 |
| 102514 | MS 10-24 | 10.00 mm | 24 | 14.00 mm | 276 | 3.00 | 16.00 |
| 102515 | MS 10-32 | 10.00 mm | 32 | 14.00 mm | 352 | 3.00 | 23.00 |
| 102512 | MS 1012-0832 | 10.00-8.00 mm | 12 + 32 | 14.00-12.00 mm | 409 | 2.40 | 19.00 |
| 102518 | MS 13-24 | 13.00 mm | 24 | 17.00 mm | 293 | 4.00 | 27.00 |
| 102520 | MS 13-32 | 13.00 mm | 32 | 17.00 mm | 379 | 4.00 | 34.50 |
| 102516 | MS 1312-1032 | 13.00-10.00 mm | 12 + 32 | 17.00-14.00 mm | 499 | 7.20 | 37.50 |

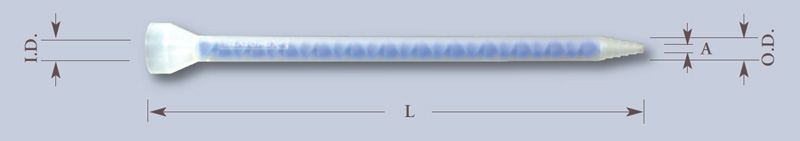

ME-Series Mixers to be used for Machine Mixing
STATOMIX® ME series static mixers, when used with meter mix equipment, provide a low cost solution for 2-component mixing. The mixer element is molded of polyacetal to withstand the higher pressures of meter mix machines.
ME Series static mixers are also available with support washers. The washer will prevent the elements from extruding out the end of the housing when working with high pressure applications.
STATOMIX® ME static mixers are suitable for all types of meter, mix and dispensing systems. Check with our sales department for the correct static mixer for your equipment.
(NOTE: The only functional difference between the ME Series and the MS
Series is the inned diameter of the bell inlet housing: ME=.625 inches and MS=.657 inches)
ME Series for Multiple Ratios Including 1:1, 2:1, 4:1 & 10:1
| Part No. | Description | Inner Diameter | Num. of Elements | Outer Diameter | Length(mm) | Nozzle Diameter | Approx Content Vol(ml) |
|---|---|---|---|---|---|---|---|
| 102448 | ME 05-24 | 5.00 mm | 24 | 8.00 mm | 149 | 1.50 | 2.30 |
| 102449 | ME 05-32 | 5.00 mm | 32 | 8.00 mm | 188 | 1.50 | 2.80 |
| 102450 | ME 06-24 | 6.35 mm | 24 | 10.00 mm | 185 | 1.90 | 4.20 |
| 102451 | ME 06-32 | 6.35 mm | 32 | 10.00 mm | 234 | 1.90 | 6.60 |
| 102452 | ME 06-48 | 6.35 mm | 48 | 10.5 mm | 334 | 2.20 | 10.00 |
| 102453 | ME 08-24 | 8.00 mm | 24 | 12.00 mm | 223 | 2.40 | 8.50 |
| 102454 | ME 08-32 | 8.00 mm | 32 | 12.00 mm | 287 | 2.40 | 11.50 |
| 102456 | ME 10-24 | 10.00 mm | 24 | 14.00 mm | 276 | 3.00 | 16.00 |
| 102457 | ME 10-32 | 10.00 mm | 32 | 14.00 mm | 352 | 3.00 | 23.00 |
| 102455 | ME 1012-0832 | 10.00-8.00 mm | 12 + 32 | 14.00-12.00 mm | 409 | 2.40 | 19.00 |
| 102459 | ME 13-24 | 13.00 mm | 24 | 17.00 mm | 293 | 4.00 | 27.00 |
| 102461 | ME 13-32 | 13.00 mm | 32 | 17.00 mm | 379 | 4.00 | 34.50 |
| 102516 | ME 1312-1032 | 13.00-10.00 mm | 12 + 32 | 17.00-14.00 mm | 499 | 7.20 | 37.50 |

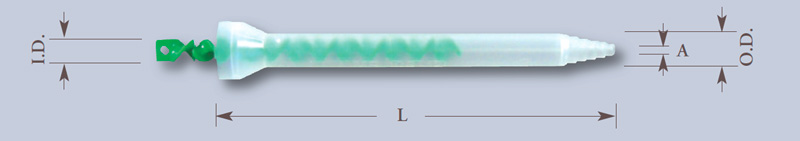

Rotary Mixers to be used for Rotary Machine Mixing
STATOMIX® MSR series static mixers are designed for use with meter mix and dispense equipment. The MSR static mixer provides an inexpensive solution for the dynamic mixing of low viscosity, 2-component adhesives. In dynamic mixing, unlike that of motionless mixing, the elements within the mixer rotate. This makes the MR Series ideally suited for hard-to-mix foams and urethane elastomers. Its low cost allows the entire static mixer to be discarded, eliminating costly cleaning procedures associated with dynamic mixing.
MSR Series static mixers are designed with a modifiable stepped end which allows for increased outlet diameters.
MSR Series for Multiple Ratios Including 1:1, 2:1, 4:1 & 10:1
| Part No. | Description | Inner Dia. I.D.(mm) | Num. of Elements | Outer Dia. O.D.(mm) | Length(mm) | Nozzle Dia. A(mm) | Approx Content Vol(ml) |
|---|---|---|---|---|---|---|---|
| 102499 | MSR 06-12 | 6.40 | 12 | 10 | 111 | 1.80 | 30 |
| 102500 | MSR 08-12 | 8.00 | 12 | 12 | 130 | 2.40 | 27 |
| 102501 | MSR 10-12 | 10.00 | 12 | 14 | 155 | 3.00 | 22 |
| 102502 | MSR 13-12 | 13.00 | 12 | 17 | 197 | 4.00 | 17 |
