B-Outlet Mixers
B-Outlet Mixers designed for "New" 50ml-75ml cartridges
The STATOMIX™ MBH-MBQ Series cartridge static mixers were developed for the MIXPAC™ B-50 System. The unique interface with separated outlets between cartridge and static mixer eliminates the possibility of cross contamination and avoids plugged cartridges. An enhanced design of the mixer allows for the mixing and dispensing of higher viscosity adhesives. Higher dispensing pressures also allow for the use of smaller static mixers, promoting less waste. Shorter mixers make it easier to place mixed adhesive precisely where you want it. A color-coding system has been implemented with this new MIXPAC™ B-50 System to help the user easily identify the appropriate cap and static mixer combination.
The MBH-MBQ Series static mixers come in a variety of sizes and will mix virtually any 2-part material including epoxies, silicones, urethanes, acrylics and polyesters.

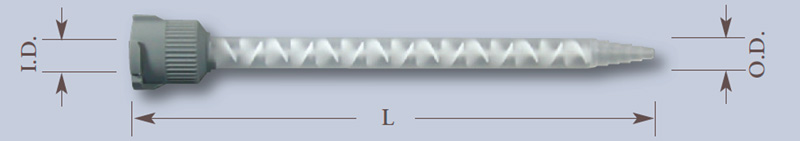

MBH Series for Ratios 1:1, 2:1 & 3:2
| Part No. | Description | Inner Diameter(mm) | Num. of Elements | Outer Diameter(mm) | Length(mm) | Approx Content Vol(ml) |
|---|---|---|---|---|---|---|
| 116458 | MBH 03-12S | 3.2 | 12 | 4.80 | 63.50 | 0.51 |
| 116461 | MBH 03-16S | 3.2 | 16 | 4.80 | 76.50 | 0.59 |
| 116464 | MBH 04-16S | 4.2 | 16 | 5.90 | 96.00 | 1.20 |
| 116467 | MBH 05-16T | 5.4 | 16 | 7.00 | 111.80 | 2.04 |
| 116468 | MBH 05-20T | 5.4 | 20 | 7.00 | 132.80 | 2.37 |
| 116470 | MBH 06-16T | 6.5 | 16 | 8.20 | 132.00 | 3.14 |
| 116471 | MBH 06-20T | 6.5 | 20 | 8.20 | 157.00 | 3.88 |

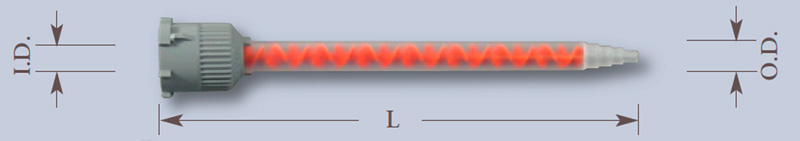

MBHX Series for Ratios 1:1 & 2:1
| Part No. | Description | Inner Diameter(mm) | Num. of Elements | Outer Diameter(mm) | Length(mm) | Approx Content Vol(ml) |
|---|---|---|---|---|---|---|
| 116473 | MBHX 03-16S | 3.2 | 16 | 4.80 | 77.00 | 0.60 |
| 116576 | MBHX 04-16S | 4.2 | 16 | 5.90 | 96.00 | 1.15 |
| 116476 | MBHX 05-16T | 5.4 | 16 | 7.00 | 111.00 | 2.06 |
| 116481 | MBHX 06-20T | 6.5 | 20 | 8.20 | 156.70 | 3.88 |

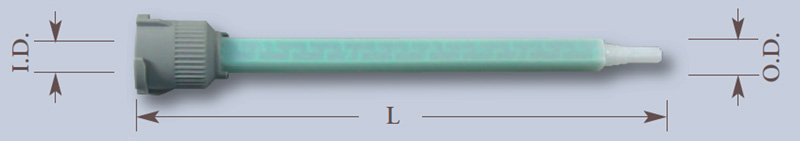

MBQ Series for Ratios 1:1 & 2:1
| Part No. | Description | Inner Diameter(mm) | Num. of Elements | Outer Diameter(mm) | Length(mm) | Approx Content Vol(ml) |
|---|---|---|---|---|---|---|
| 114144 | MBQ 05-16L | 5.4 | 16 | 1.70 | 90.70 | 1.88 |
| 114145 | MBQ 05-24L | 5.4 | 24 | 1.70 | 120.70 | 2.60 |

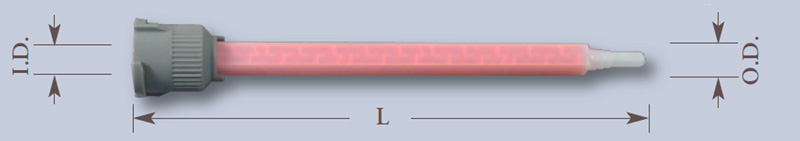

MBQX Series for Ratios 4:1 & 10:1
| Part No. | Description | Inner Diameter(mm) | Num. of Elements | Outer Diameter(mm) | Length(mm) | Approx Content Vol(ml) |
|---|---|---|---|---|---|---|
| 116063 | MBQX 05-16L | 5.4 | 16 | 1.70 | 90.70 | 1.72 |
| 116063 | MBQX 05-24L | 5.4 | 16 | 1.70 | 120.70 | 2.37 |
