Bayonet Mixers
Bayonet Mixers designed for standard 50ml-75ml cartridges

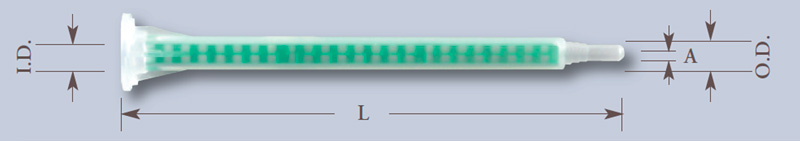

The STATOMIX® MAH-MAQ Series static mixers feature simple twist-lock mounting. The static mixers' first element automatically aligns itself precisely with the dividing wall of the MIXPAC® 50 cartridge, separating Part A and Part B. As a result of this patented design, the MAH-MAQ static mixer prevents curing at the interface of the cartridge.
The MAH-MAQ Series static mixer comes in a wide variety of sizes and will mix virtually any 2-part material including epoxies, silicones, urethanes, acrylics and polyesters.
MAH-MAQ Series static mixers can also be used for a wide variety of low-pressure meter mix applications.

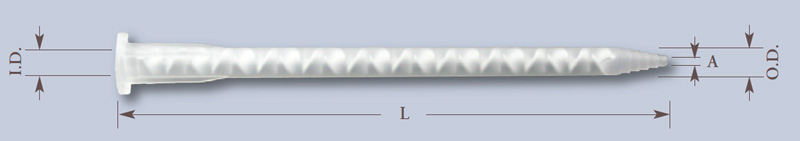

MAH Series for Ratios 1:1 & 2:1
| Part No. | Description | Inner Dia. I.D.(mm) | Num. of Elements | Outer Dia. O.D.(mm) | Length(mm) | Nozzle Dia. A(mm) | Approx Content Vol(ml) |
|---|---|---|---|---|---|---|---|
| 102361 | MAH 03-07S | 3 | 7 | 4.60 | 33.20 | 1.00 | 0.19 |
| 102362 | MAH 03-13S | 3 | 13 | 4.60 | 50.60 | 1.00 | 0.29 |
| 102364 | MAH 03-17S | 3 | 17 | 4.60 | 62.20 | 1.00 | 0.34 |
| 102366 | MAH 04-13S | 4 | 13 | 5.80 | 66.00 | 2.00 | 0.60 |
| 102368 | MAH 04-17S | 4 | 17 | 5.80 | 81.60 | 2.00 | 0.75 |
| 102369 | MAH 05-07T | 5.4 | 7 | 7.00 | 55.70 | 1.50 | 0.78 |
| 102371 | MAH 05-13T | 5.4 | 13 | 7.00 | 84.60 | 1.50 | 1.36 |
| 102372 | MAH 05-17T | 5.4 | 17 | 7.60 | 103.60 | 1.50 | 1.68 |
| 102373 | MAH 05-21T | 5.4 | 21 | 7.60 | 124.00 | 1.50 | 2.01 |
| 102377 | MAH 06-12T | 6.35 | 12 | 12 | 97.00 | 1.50 | 2.08 |
| 102378 | MAH 06-17T | 6.35 | 17 | 8.70 | 128.00 | 1.50 | 2.92 |
| 102379 | MAH 06-21L | 6.35 | 21 | 8.70 | 151.50 | 1.60 | 3.33 |
| 102380 | MAH 06-21T | 6.35 | 21 | 8.70 | 153.00 | 1.50 | 3.57 |
| 102360 | MAH 0517-0413 | 5.40 - 4.00 | 17 + 13 | 7.6 - 5.7 | 149.00 | 1.50 | 2.10 |

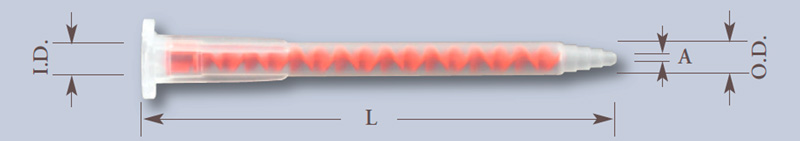

MAHX Series for Ratios 4:1 & 10:1
| Part No. | Description | Inner Dia. I.D.(mm) | Num. of Elements | Outer Dia. O.D.(mm) | Length(mm) | Nozzle Dia. A(mm) | Approx Content Vol(ml) |
|---|---|---|---|---|---|---|---|
| 102535 | MAHX 04-17S | 4 | 17 | 5.80 | 81.60 | 2.00 | 0.75 |
| 102536 | MAHX 05-17T | 5.4 | 17 | 7.60 | 103.70 | 1.50 | 1.53 |
| 102529 | MAHX 0517-0413 | 5.40 - 4.00 | 17 + 13 | 7.6 - 5.7 | 149.00 | 1.50 | 2.10 |
